High Quality HDPE Pipeline Irrigation System For Garden Irrigation
PE PIPE PE tube HDPE tube HDPE pipes Pipes HDPE HDPE pipe prices Polyethylene pipe Polyethylene tube HDPE pipe prices High density polyethylene pipe HDPE pipe manufacturers HEDP pipe 75mm Hdpe pipe 90mm HDPE pipe 110mm HDPE pipe 160mm HDPE pipe 200mm HDPE pipe 250mm 125mm HDPE pipe 140mm HDPE pipe 1.5 inch HDPE pipe prices 4 inch poly pipe 10 inch HDPE pipe prices 12 inch HDPE pipe prices 12 HDPE pipe prices HDPE pipe class10
Description
HDPE pipe for water supply
Our company is a professional comprehensive enterprise which has been engaging in the research, manufacturing and sales all kinds of high-quality plastic pipes and pipe fittings for nearly 20 years. Our company covers more than 40000 square meters and has more than 50 advanced production lines and more than 20 sets of testing equipment for high-quality HDPE and UPVC pipes for water supply ,sewerage and drainage, garden and farmland irrigation, borehole and deep well. PVC-M High impact water pipe, PPR pipes for hot and cold water, HDPE corrugated pipe, HDPE steel belt corrugated pipe, HDPE double-wall corrugated pipe for sewer and drainage, CPVC and MPP pipes for electric cable and wire protection, HDPE pipe for gas and mining and pipe fittings in various series and specifications with annual output of more than 200,000 tons. We are also specialized in pipe network design, cost assessment, installation and construction.
HDPE pipe for water supply
Specifications:
|
GB/T13663.2-2018 standard HDPE pipe for water supply |
|||||||||
|
Nominal Outside Diameter(dn) |
Wall Thickness e n ( m m ) |
||||||||
|
Nominal Pressure |
0.4MPA |
0.5MPA |
0.6MPA |
0.8MPA |
1.0MPA |
1.25MPA |
1.6MPA |
2.0MPA |
|
|
SDR |
SDR41 |
SDR33 |
SDR26 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
SDR9 |
|
|
Dn(mm) |
inch |
|
|
|
|
|
|
|
|
|
16 |
5/8 |
|
|
|
|
|
|
|
2.3 |
|
20 |
1/2 |
|
|
|
|
|
|
2.3 |
2.3 |
|
25 |
3/4 |
|
|
|
|
|
2.3 |
2.3 |
3.0 |
|
32 |
1 |
|
|
|
|
2.3 |
2.4 |
3.0 |
3.6 |
|
40 |
1.25 |
|
|
|
2.3 |
2.4 |
3.0 |
3.7 |
4.5 |
|
50 |
1.5 |
|
|
2.3 |
2.4 |
3.0 |
3.7 |
4.6 |
5.6 |
|
63 |
2 |
|
|
2.5 |
3.0 |
3.8 |
4.7 |
5.8 |
7.1 |
|
75 |
2.5 |
|
|
2.9 |
3.6 |
4.5 |
5.6 |
6.8 |
8.4 |
|
90 |
3 |
|
|
3.5 |
4.3 |
5.4 |
6.7 |
8.2 |
10.1 |
|
110 |
4 |
|
|
4.2 |
5.3 |
6.6 |
8.1 |
10.0 |
129 |
|
125 |
-- |
|
|
4.8 |
6.0 |
7.4 |
9.2 |
11.4 |
14.0 |
|
140 |
5 |
|
|
5.4 |
6.7 |
8.3 |
10.3 |
12.7 |
15.7 |
|
160 |
6 |
|
|
6.2 |
7.7 |
9.5 |
11.8 |
14.6 |
17.9 |
|
180 |
7 |
|
|
6.9 |
8.6 |
10.7 |
13.3 |
16.4 |
20.1 |
|
200 |
-- |
|
|
7.7 |
9.6 |
11.9 |
14.7 |
18.2 |
22.4 |
|
225 |
8 |
|
|
8.6 |
10.8 |
13.4 |
16.6 |
20.5 |
25.2 |
|
250 |
10 |
|
|
9.6 |
11.9 |
14.8 |
18.4 |
22.7 |
27.9 |
|
280 |
11 |
|
|
10.7 |
13.4 |
16.6 |
20.6 |
25.4 |
31.3 |
|
315 |
12 |
7.7 |
9.7 |
12.1 |
15.0 |
18.7 |
23.2 |
28.6 |
35.2 |
|
355 |
14 |
8.7 |
10.9 |
13.6 |
16.9 |
21.1 |
26.1 |
32.2 |
39.7 |
|
400 |
16 |
9.8 |
12.3 |
15.3 |
19.1 |
23.7 |
29.4 |
36.3 |
44.7 |
|
450 |
18 |
11.0 |
13.8 |
17.2 |
21.5 |
26.7 |
33.1 |
40.9 |
50.3 |
|
500 |
20 |
12.3 |
15.3 |
19.1 |
23.9 |
29.7 |
36.8 |
45.4 |
55.8 |
|
560 |
22 |
13.7 |
17.2 |
21.4 |
26.7 |
33.2 |
41.2 |
50.8 |
625 |
|
630 |
24 |
15.4 |
19.3 |
24.1 |
30.0 |
37.4 |
46.3 |
57.3 |
70.3 |
|
710 |
28 |
17.4 |
21.8 |
27.2 |
33.9 |
42.1 |
52.2 |
64.5 |
79.3 |
|
800 |
32 |
19.6 |
24.5 |
30.6 |
38.1 |
47.4 |
58.8 |
72.6 |
89.3 |
|
900 |
36 |
22.0 |
27.6 |
34.4 |
42.9 |
53.3 |
66.2 |
81.7 |
|
|
1000 |
40 |
24.5 |
30.6 |
38.2 |
47.7 |
59.3 |
72.5 |
90.2 |
|
|
1200 |
48 |
29.4 |
36.7 |
45.9 |
57.2 |
67.9 |
88.2 |
|
|
|
Inch |
Nominal Diam.(DN) |
Nominal Outer Diam. (dn) |
DIN (China) |
ANSI/SCH40 (USA) |
ANSI/SCH80 (USA) |
JIS (JAPAN) |
CNS(UK) |
BS(UK) |
|||
|
|
|
|
Outer Diam. (MM) |
Outer Diam. (MM) |
Wall THK (MM) |
Outer Diam. (MM)) |
Wall THK (MM) |
Spec. |
Outer Diam. (MM) |
Outer Diam. (MM) |
Outer Diam. (MM) |
|
1/2" |
DN15 |
dn20 |
20 |
21.34 |
2.77 |
21.34 |
3.73 |
16A |
22 |
22 |
21.35 |
|
3/4" |
DN20 |
dn25 |
25 |
26.67 |
2.87 |
26.67 |
3.91 |
20A |
26 |
26 |
26.75 |
|
1" |
DN25 |
dn32 |
32 |
33.4 |
3.38 |
33.4 |
4.55 |
25A |
32 |
34 |
33.55 |
|
1-1/4" |
DN32 |
dn40 |
40 |
42.16 |
3.56 |
42.16 |
4.85 |
30A |
38 |
42 |
42.25 |
|
1-1/2" |
DN40 |
dn50 |
50 |
48.26 |
3.68 |
48.26 |
5.08 |
40A |
48 |
48 |
48.25 |
|
2" |
DN50 |
dn63 |
63 |
60.32 |
3.91 |
60.32 |
5.54 |
50A |
60 |
60 |
60.35 |
|
2-1/2" |
DN65 |
dn75 |
75 |
73.02 |
5.16 |
73.02 |
7.01 |
65A |
76 |
76 |
75.1-75.5 |
|
3" |
DN80 |
dn90 |
90 |
88.9 |
5.49 |
88.9 |
7.62 |
75A |
89 |
89 |
88.9 |
|
4" |
DN100 |
dn110 |
110 |
114.3 |
6.02 |
114.3 |
8.56 |
100A |
114 |
114 |
114.3 |
|
5" |
DN125 |
dn140 |
140 |
141.3 |
6.55 |
141.3 |
9.52 |
125A |
140 |
140 |
140.2 |
|
6" |
DN150 |
dn160 |
160 |
168.28 |
7.11 |
168.28 |
10.97 |
150A |
165 |
165 |
168.25 |
|
8" |
DN200 |
dn225 |
225 |
219.08 |
8.18 |
219.08 |
12.70 |
200A |
216 |
216 |
219.1 |
|
10" |
DN250 |
dn280 |
280 |
273.05 |
9.27 |
273.05 |
15.06 |
250A |
267 |
267 |
273 |
|
12" |
DN300 |
dn315 |
315 |
323.85 |
10.31 |
323.85 |
17.45 |
300A |
318 |
318 |
323.85 |
|
14" |
DN350 |
dn355 |
355 |
355.6 |
11.10 |
355.6 |
19.05 |
|
|
|
355.5 |
|
16" |
DN400 |
dn400 |
400 |
406.4 |
12.70 |
406.4 |
21.41 |
|
|
|
406.4 |
|
18" |
DN450 |
dn450 |
450 |
457.2 |
14.27 |
457.2 |
23.80 |
|
|
|
|
|
20" |
DN500 |
dn500 |
500 |
508 |
15.06 |
508 |
26.19 |
|
|
|
|
|
24" |
DN600 |
dn630 |
630 |
609.6 |
17.45 |
609.6 |
30.94 |
|
|
|
|
Performance Parameter:
|
Item NO. |
Item |
Value |
|
|
1 |
20℃ Hydrostatic Strength (Hoop Stress 12.0Mpa,100h) |
No Rupture, No Leakage |
|
|
2 |
80℃ Hydrostatic Strength (Hoop Stress 5.4Mpa,165h) |
No Rupture, No Leakage |
|
|
3 |
80℃Hydrostatic Strength (Hoop Stress 5.0Mpa,1000h) |
No Rupture, No Leakage |
|
|
4 |
Elongation at Break % |
≥350 |
|
|
5 |
Longitudinal Shrinkage Rate(100℃)% |
≤3 |
|
|
6 |
Oxidation Induction Time(200℃),min |
≥20 |
|
|
7 |
weathering resistance 1)(After the pipe receive ≥3.5 GJ/m2 aging energy) |
80℃ Hydrostatic Strength (Hoop Stress 5.4Mpa,165h) |
No Rupture, No Leakage |
|
Elongation at Break % |
≥350 |
||
|
Oxidation Induction Time(200℃),min |
≥10 |
||

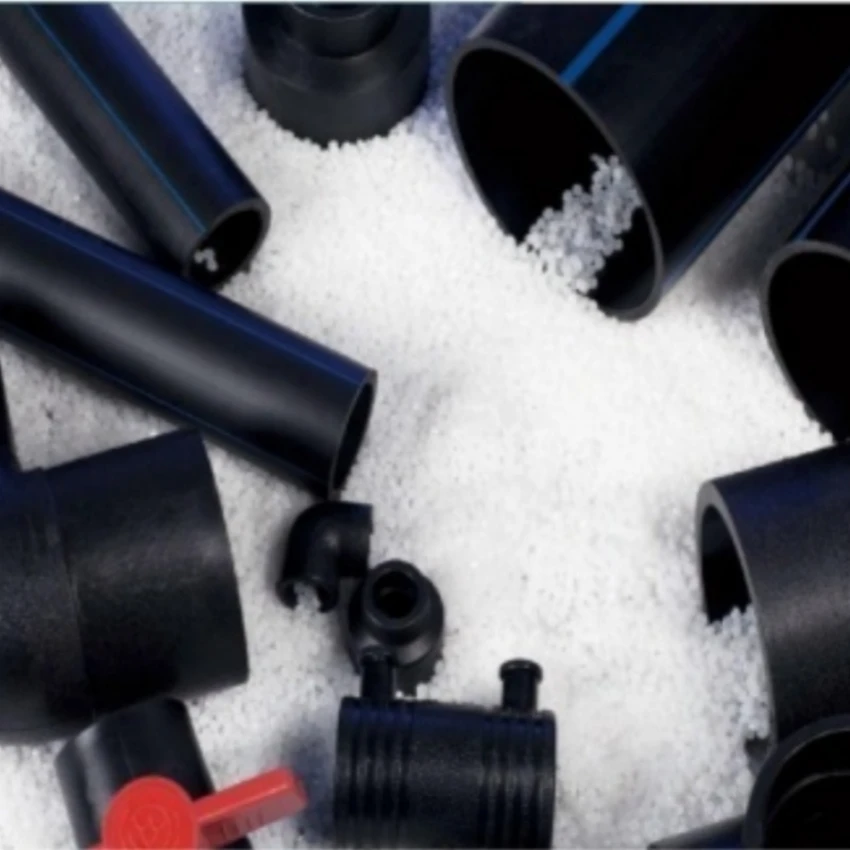

Good quality raw materials
Wide range of sizes available
Customized color available
Flange Welding Available
HDPE pipes series
Advanced processing and testing equipment
Strictly complying to ISO Standard
